FINELITE (Legrand)

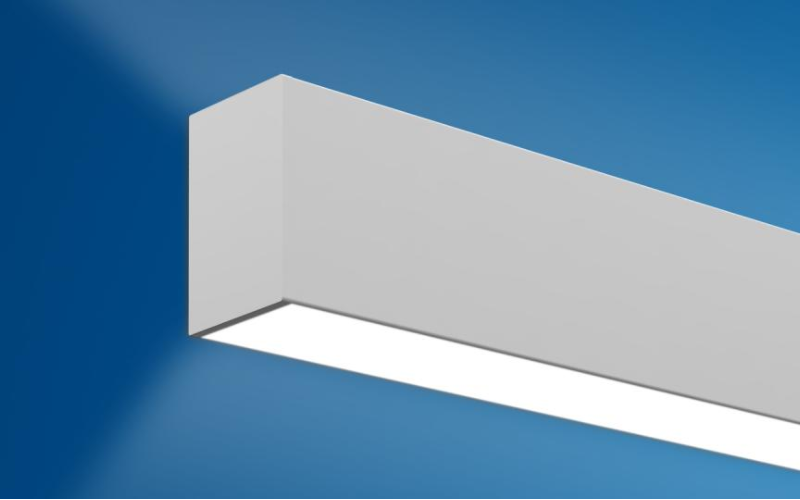

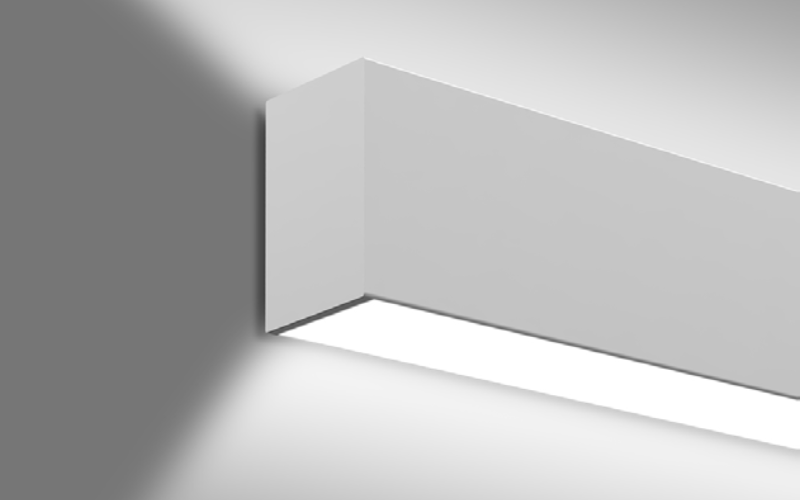

HP-3. High Performance 3'' Aperture Wall Mount Indirect Direct.
Configure
Add to project
RESOURCES
DESCRIPTION
A wall mount luminaire for indirect/direct illumination with a 3" aperture, HP-3 WM-ID is available as individual fixtures in 2' minimum sections, or as a continuous run down to 1/16".
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: Run length (Ft)H: 4 3/4"4"
- Light SourceLED
- CCT/Color3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)6.7 W/Ft7.3 W/Ft7.7 W/Ft8.6 W/Ftcustom
- Lumens(Approx)678 Lm/Ft578 Lm/Ft723 Lm/Ft848 Lm/Ft955 Lm/Ft814 Lm/Ft1221 Lm/Ft1040 Lm/Ftcustom
- OpticsDirectDirect/IndirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron EcoSystemeldoLED DUAL DALIeldoLED POWER DMX/RDMeldoLED SOLO 0-10VEldoLED SOLO 0-10V/DALIEldoLED 0-10V/DALI
- Controls/NetworkLutron®nLight®Wattstopper® DLMIntegral Sensor
- Power/VoltageIntegral120V277V347V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesETLDeclareBAA
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHP-3-WM-ID
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
