FINELITE (Legrand)
HP-1. High Performance 1" Aperture Pendant Indirect Direct.
Configure
Add to project
RESOURCES
DESCRIPTION

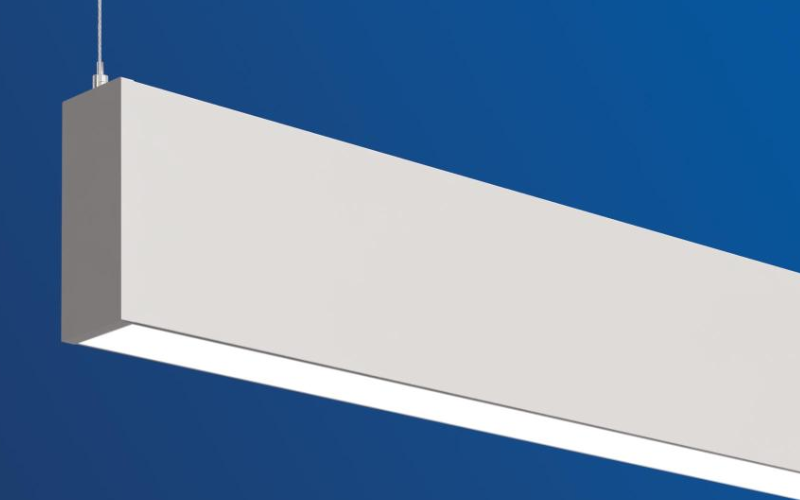

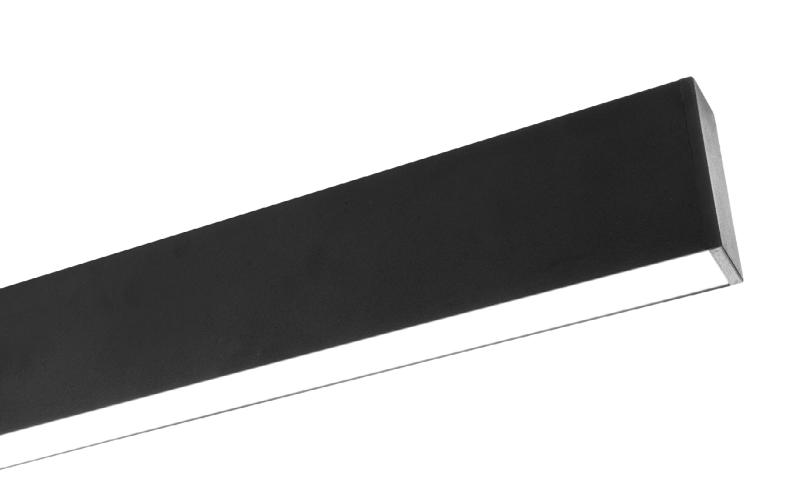

HP-1 ID — a sleek, affordable linear LED fixture. Its narrow aperture offers a slim modern look, while still including an integral driver for simplified installation. Micro louvers are available as an option for reduced glare for quiet and comfortable lighting.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 1/2"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtRun length (Ft)H: 4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)2 W/Ft1.9 W/Ft3 W/Ft2.9 W/Ft4.3 W/Ft4.1 W/Ft5.7 W/Ft5.3 W/Ftcustom
- Lumens(Approx)241 Lm/Ft227 Lm/Ft376 Lm/Ft362 Lm/Ft536 Lm/Ft696 Lm/Ft511 Lm/Ft652 Lm/Ftcustom
- OpticsIndirect/DirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron EcoSystemeldoLED SOLO 0-10VEldoLED SOLO 0-10V/DALI
- Controls/NetworknLight®
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance100000 h
- CertificatesETLDeclareBAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHP-1-P-ID
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
