Fluxwerx

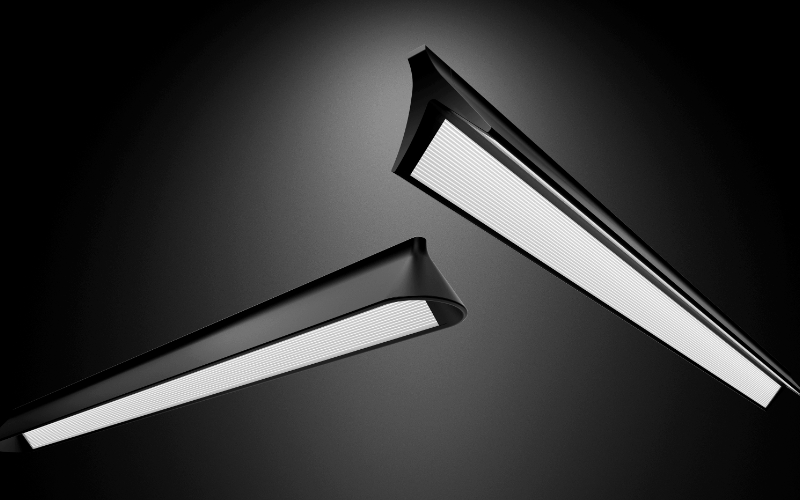

SL1L. SPLICE.
 Configure
 Add to project
DESCRIPTION
Refined form elevates the functional
Seamless integration of optical innovation with minimalist industrial design. Featuring a diminutive open form and a fully luminous interior, Splice delivers a linear aesthetic that is simultaneously distinctive and subtle.

A Finer Degree of Comfort and Control
Linear Anidolic-Extraction Optics™ extends the transparency of the lens to the perimeter, delivering an unobstructed view down the luminous length of the luminaire while maintaining beam definition.

Precise control and extraction features shape the light into high performance distributions, delivering on average 40 fc at under 4.31 W/m².

Minimal by design. Intentional in performance.
Engineered to exceed expectations, Splice delivers exceptional efficiency, long-term reliability, and colour fidelity. Whether the goal is focused direct illumination or a more balanced combination of indirect and direct distribution options, Splice can be configured around the needs of the space.

 Built Clean For Smarter, Health-Conscious Design
The Declare Living Building program is a transparency initiative by the International Living Future Institute that encourages manufacturers to disclose the environmental and health impacts of their building products.


Splice is Declared—an assurance of material integrity that aligns with the most rigorous sustainability standards in architecture. This designation reflects our commitment to transparency, environmental stewardship, and supporting architects and builders in creating healthier, eco-friendly buildings.

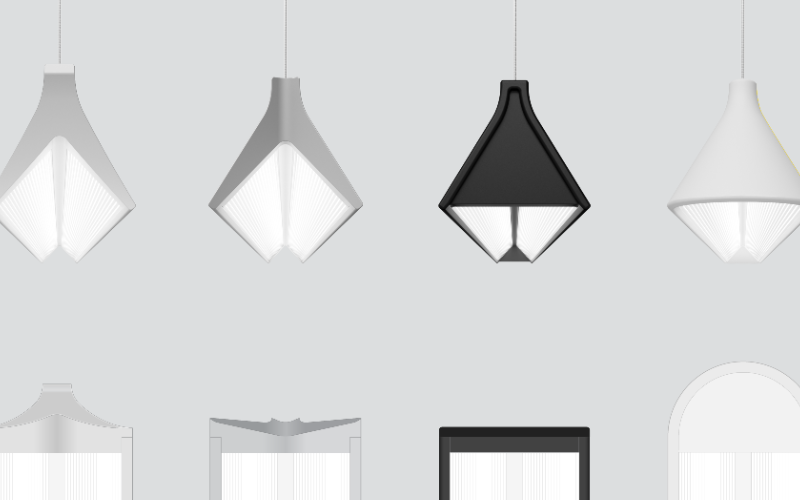

One Form. Four Expressions.
Realise your vision for all general area illumination needs—without sacrifice. Tailored to the design intent, Splice's four endcap styles offer different architectural expressions while delivering the same considered performance.

Installed as a Discrete Pendant or in Seamless Runs

A Precise Measure of Efficiency
Engineered to exceed expectations, Splice delivers exceptional efficiency, long-term reliability, and colour fidelity. Whether the goal is focused direct illumination or a more balanced combination of direct and indirect light, Splice can be configured around the needs of the space.

Narrow + Integrated
Splice incorporates a narrow gauge, integrated power and suspension cord - a mere 1/8 in diameter—to ensure the clean minimalist form remains the focus.

 More Choices. More Flexibility.
All standard finish options are selectable by component at no additional cost, delivering a seamless integration with any architectural environment.

Design Without Compromise
Splice takes linear lighting in a new direction. Less mass. More openness. A form that becomes part of the architecture rather than simply occupying it. Choose from a variety of aesthetic and performance options to match your vision—all with no difference in price.


Light, Design and Performance. Unified.


MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.92"
    L: 4 Ft6 Ft8 FtRun length (Ft)
    H: 3.35"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    11.3 W14.4 W17.6 W22 W27.1 W
  • Lumens(Approx)
    1613 Lm2032 Lm2551 Lm3136 Lm3888 Lm
  • Optics
    DirectDirect/IndirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
  • Controls/Network
    Lutron®nLight®Wattstopper® DLMIntegral Sensor
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    102000 h
  • Certificates
    UL/CULDeclare
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
