Exitronix (Barron Lighting Group)

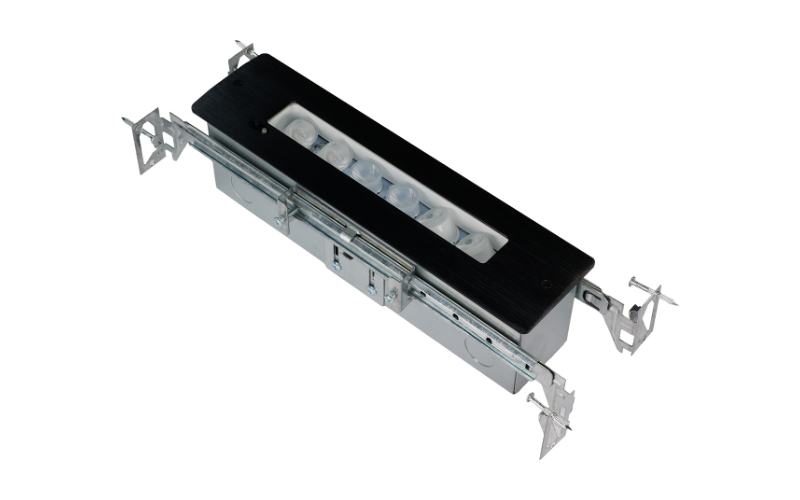

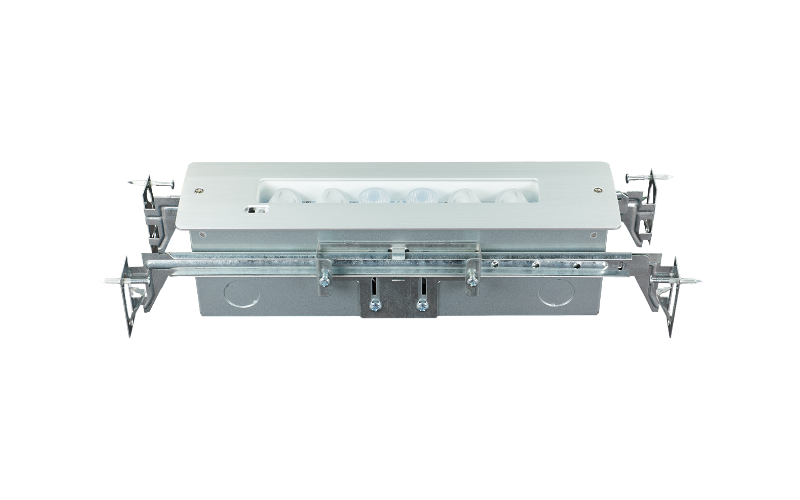

REF Series Recessed Emergency Lighting Unit.
Configure
Add to project



RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The REF Series leverages LED technology to provide a flush, recessed, ceiling mount emergency lighting unit. Six LED lamps will provide bright, uniform illumination at various mounting heights along the path of egress allowing up to 54' spacing. With no lamp adjustments required, it is a no-fuss, hassle-free installation. The REF series LED emergency unit is particularly well-suited for commercial and architectural applications where safety and low maintenance are essential. It is ideal for use in schools, office buildings and public locations with low ceiling heights needing a low-profile aesthetic. The REF series can deliver code-required egress illumination while keeping visual clutter to a minimum.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.75"L: 10.63"
- Light SourceLED
- CCT/Color
- CRI
- Watt(Approx)1.5 W5 W
- Lumens(Approx)300 Lm800 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall RecessedDrywall
- HousingNew Construction
- Housing Depth3 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
