Eureka Lighting (Acuity Brands Lighting)

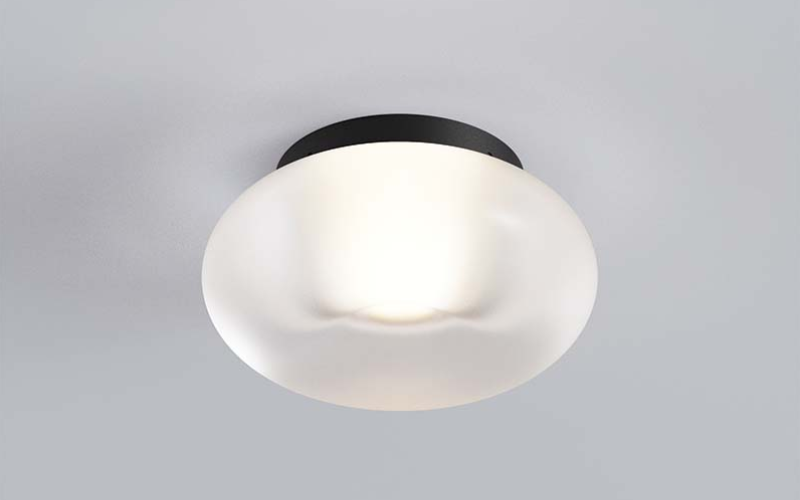

3404. ORELIA Ceiling Surface.
Configure
Add to project
RESOURCES
DESCRIPTION
Design:
Orelia’s soft, rounded form provides a welcoming aesthetic, while its alluring diffusion effect adds a touch of luxury to any space.
Light Source:
A highly powerful COB light source. Orelia has an integral aluminum heatsink conceived and tested to provide a long lifetime.
Structure:
Die-cast aluminum base, available in 14 textured finishes and 2 metallic finishes.
Diffuser:
Its machined acrylic diffuser is available in 2 options: the clear version provides fascinating light refraction, while the frosted finish offers uniform diffusion.
Certified:
CSA Listed to US and Canadian safety standards; 25°C ambient. Orelia can be used to comply with the requirements in 2022 Title 24, Part 6 JA8 High Luminous Efficacy Luminaire Requirements.
Finish AYE | BLKE | BRE | CBE | CHM | CPE | DBE | GGE | HGE | LNE | NBE | SBE | SGE | SIM | STE | WHE
Shade Finish: CFRA | FROA
Orelia’s soft, rounded form provides a welcoming aesthetic, while its alluring diffusion effect adds a touch of luxury to any space.
Light Source:
A highly powerful COB light source. Orelia has an integral aluminum heatsink conceived and tested to provide a long lifetime.
Structure:
Die-cast aluminum base, available in 14 textured finishes and 2 metallic finishes.
Diffuser:
Its machined acrylic diffuser is available in 2 options: the clear version provides fascinating light refraction, while the frosted finish offers uniform diffusion.
Certified:
CSA Listed to US and Canadian safety standards; 25°C ambient. Orelia can be used to comply with the requirements in 2022 Title 24, Part 6 JA8 High Luminous Efficacy Luminaire Requirements.
Finish AYE | BLKE | BRE | CBE | CHM | CPE | DBE | GGE | HGE | LNE | NBE | SBE | SGE | SIM | STE | WHE
Shade Finish: CFRA | FROA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.5"L: 3.73"H: 7.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)3.7 W7.9 W
- Lumens(Approx)377 Lm757 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAT24*
- Environment
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
