Designplan

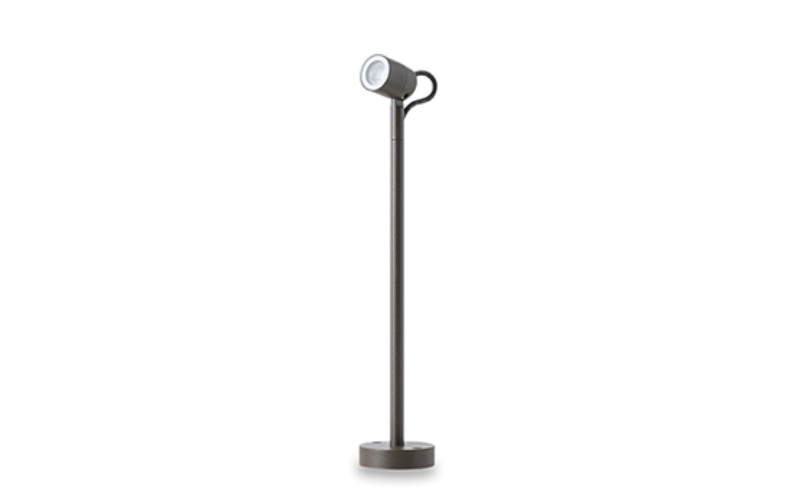

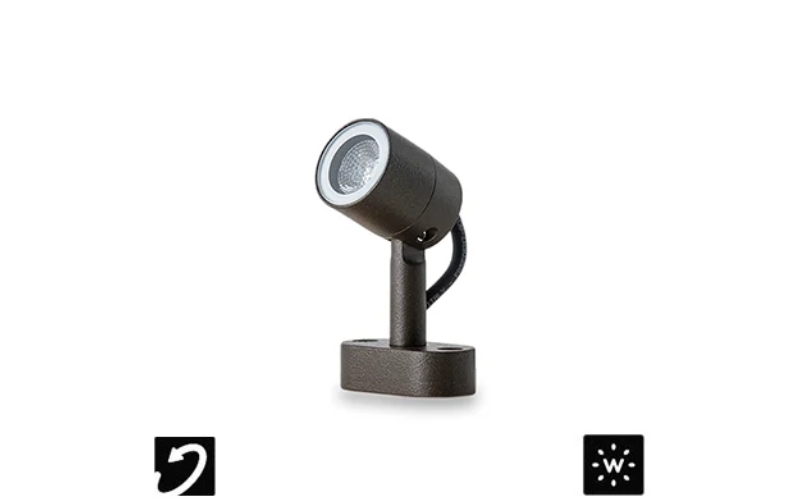

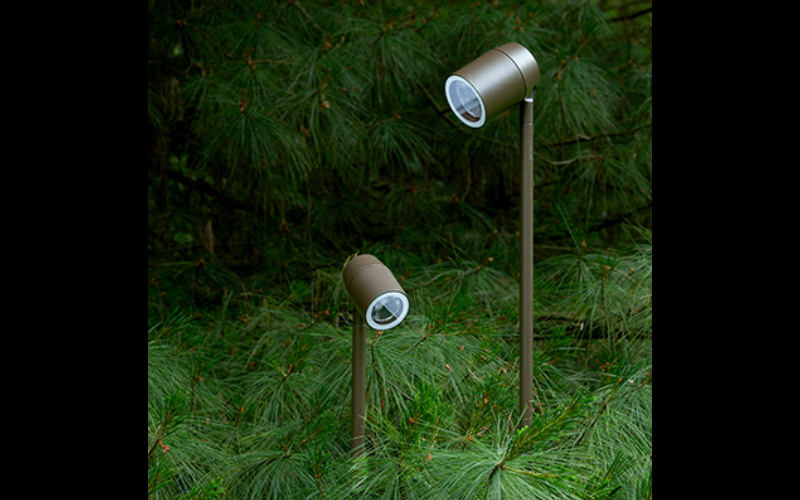

SPY 35 LED Floodlight, Ø1.4'' x 4 heights with base, 3.5W, 265 lm, IP66.
 Configure
 Add to project
Designplan. SPY 35 LED Floodlight, Ø1.4'' x 4 heights with base, 3.5W, 265 lm, IP66.
Designplan. SPY 35 LED Floodlight, Ø1.4'' x 4 heights with base, 3.5W, 265 lm, IP66.
Designplan. SPY 35 LED Floodlight, Ø1.4'' x 4 heights with base, 3.5W, 265 lm, IP66.
Designplan. SPY 35 LED Floodlight, Ø1.4'' x 4 heights with base, 3.5W, 265 lm, IP66.
RESOURCES
DESCRIPTION
SPY is a versatile outdoor floodlight, also available as a downlight, that comes in three sizes and is 355° rotatable, for fulfilling every lighting situation. It has optics set back from the edge of the main body to allow precision without glare. Also available in a wall or ‘treehugger’ version which can be secured to branches, poles or other supports. Spy 35 is the smallest version with a 1.4” diameter, and 3.5W of power. Dark Sky compliant for output below 80°.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.4"
    L: 1.4"
    H: 1.7"
  • Light Source
    LED
  • CCT/Color
    2700K3000K4000K
  • CRI
    80
  • Watt(Approx)
    3.5 W
  • Lumens(Approx)
    265 Lm
  • Optics
    DirectNarrowMediumFloodAdjustable Optics
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 3-wire (L3D)Lutron Hi-lume Eco (L3DAE)
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    72000 h
  • Certificates
    ETLDark Sky
  • Environment
    IP66
  • Mounting Type
    Ground Spike/StakeSurfaceBase
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
