Designplan

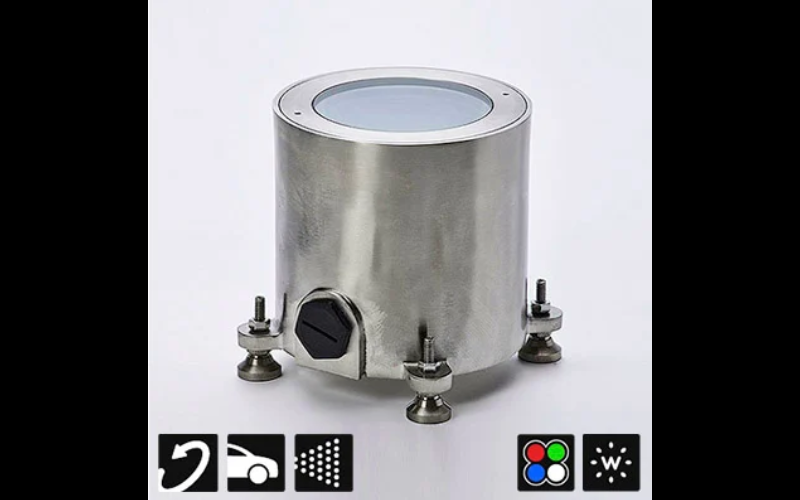

CX5 Adj. Wet Label In-Grade Uplight, Ø5.8, 10W-Static / 12W-RGBW, Driveover, IP68, IP69.
 Configure
 Add to project
Designplan. C5X Adj. Wet Label In-Grade Uplight, Ø5.8, 10W-Static / 12W-RGBW, Driveover, IP68, IP69.
Designplan. C5X Adj. Wet Label In-Grade Uplight, Ø5.8, 10W-Static / 12W-RGBW, Driveover, IP68, IP69.
RESOURCES
DESCRIPTION
CX5 is a wet label, adjustable in-grade or submersible uplight that is 5.75 inches in diameter, and suitable for power washing and submersion using special remote drivers. It is adjustable +/- 10° (total 20°) and is rotatable 120° front and back. It comes in 4 CCTs or RGBW with integral DMX decoder. Driveover rated up to 11,000 lbs.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 5.75"
    L: 5.75"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KRGBW
  • CRI
    80
  • Watt(Approx)
    10 W12 W
  • Lumens(Approx)
    750 Lm1334 Lm
  • Optics
    DirectNarrowMedium
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Premier 3-wire (L3D03W)Lutron Hi-lume Eco (L3DAE)
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    UL/CUL
  • Environment
    IP69K High-Pressure/Steam-Jet CleaningIP68
  • Mounting Type
    In-GradeConcrete Drive Over
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
