Genius Concrete IP65 LED Downlight, Ø0.9'', 6W, 442 lm, IP65.
Configure
Add to project




RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

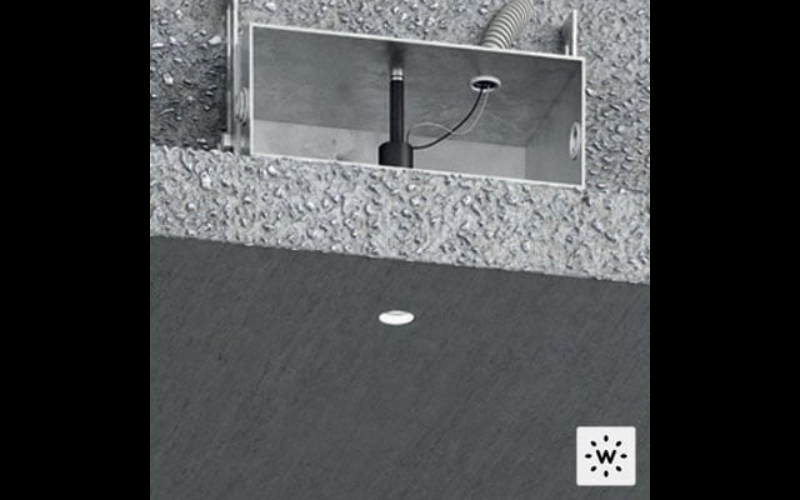

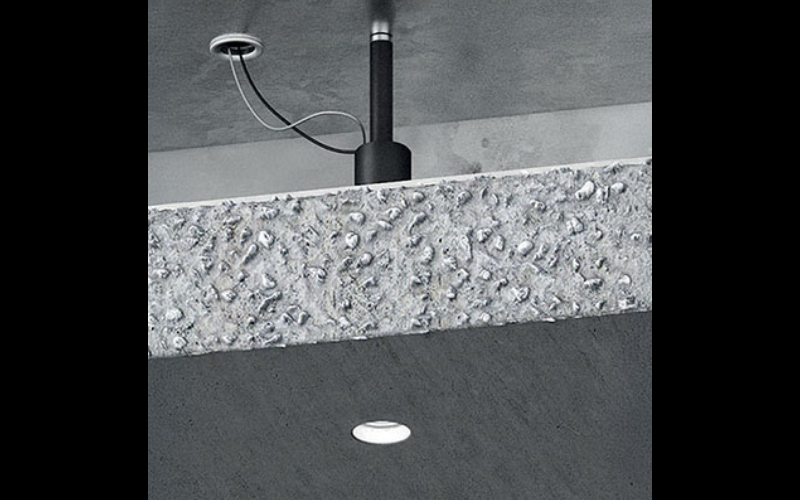

Genius Concrete IP65 is a fully concealed indoor/outdoor recessed downlight designed for exposed concrete surfaces, to be installed during the concrete casting phase. It maintains all the performances of the Genius, but has a simplified lamp body which functions as formwork, with the electrical part removable from the light hole, which allows the LED light source to be pulled out and replaced. When installed, the only visible aperture is 0.90” with no need for an inspection hatch, and it can be installed in castings with a minimum concrete cover of 2.36”.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.91"L: 0.91"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI90
- Watt(Approx)6 W
- Lumens(Approx)442 Lm
- OpticsDirectMediumWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP65
- Mounting TypeCeiling RecessedConcrete
- HousingNew Construction
- Housing Depth2.76 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBU1078
—
