Day-Brite (Genlyte Solutions)

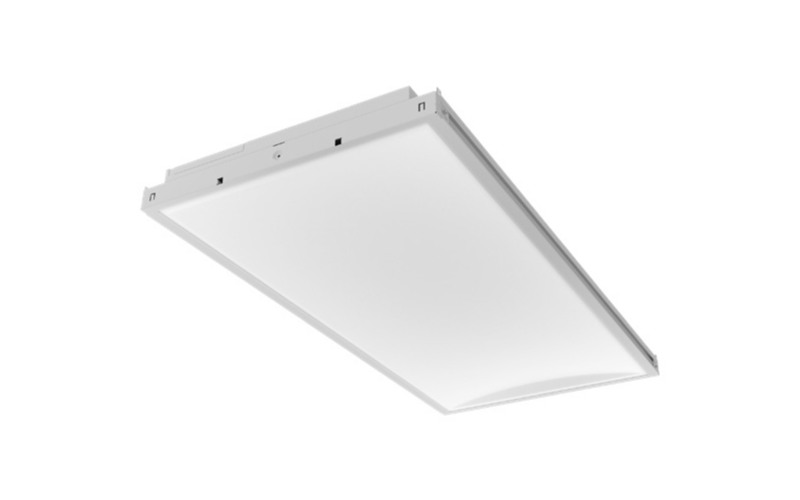

2FXC. FluxCurv 2x4 Recessed 2000 to 7400 lumens.
Configure
Add to project
RESOURCES
DESCRIPTION
FluxCurv LED recessed is a fully luminous aperture luminaire offering a diffuse, regressed curve for a unique aesthetic. FluxCurv delivers high-performing even illumination and high visual comfort. Its architectural style, coupled with controls options, makes FluxCurv an ideal choice for applications such as office, institutional, and healthcare, where energy savings and customized effects are desired.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 23.7 FtL: 47.8 FtH: 3.7"
- Light SourceLED
- CCT/Color3500K4000K5000K
- CRI80
- Watt(Approx)28.7 W32.6 W37.1 W33.4 W41.7 W58.4 W
- Lumens(Approx)4261 Lm4809 Lm3776 Lm4353 Lm5370 Lm6000 Lm7319 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Step Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkBluetoothWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance100000 h
- CertificatesETLDLC*Declare
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingChicago Plenum
- Housing Depth3.7 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time2FXC-4
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
