DESCRIPTION

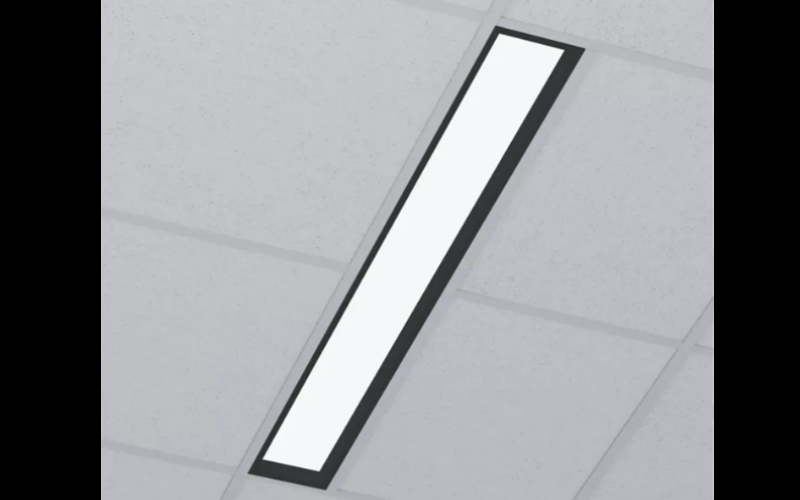

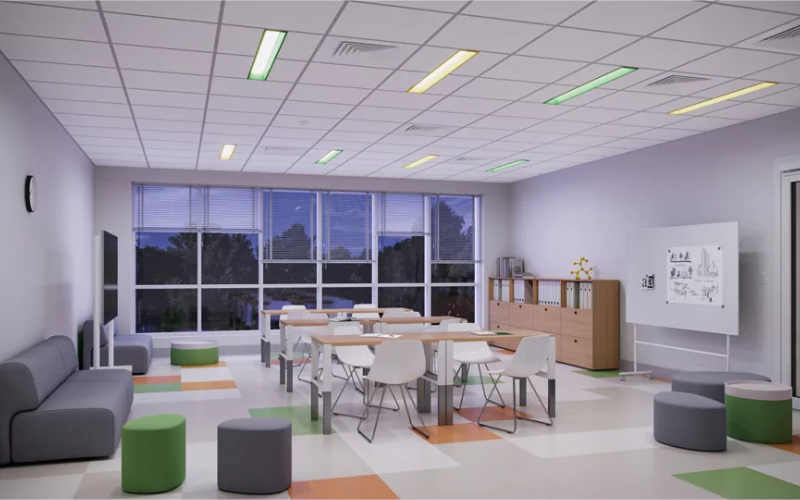

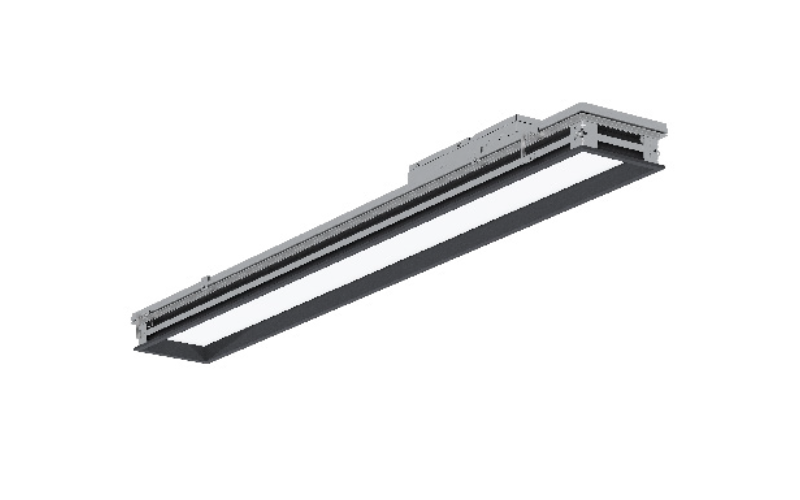

The Corelite R6R is a sleek 4-inch aperture linear fixture designed to create visual interest by elevating the illumination plane with an architectural colored regress. Available in three lengths, it features a 2" regressed beveled frame in 14 standard colors. Ideal for offices, classrooms, coves, corridors, and retail environments where differentiated lighting is desired.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.875"L: 2 Ft4 Ft8 Ft
- Light SourceLED
- CCT/Color3000K3500K4000KField Select CCT
- CRI80
- Watt(Approx)5.3 W/Ft8 W/Ft11 W/Ftswitchable
- Lumens(Approx)500 Lm/Ft750 Lm/Ft1000 Lm/Ftswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Step Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkWaveLinxIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance200000 h175000 h
- CertificatesUL/CULDLC*T24*RoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedSlot T-Grid Ceiling
- HousingIC
- Housing Depth2.375 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
