BYIBA Light (Gordon Bullard)

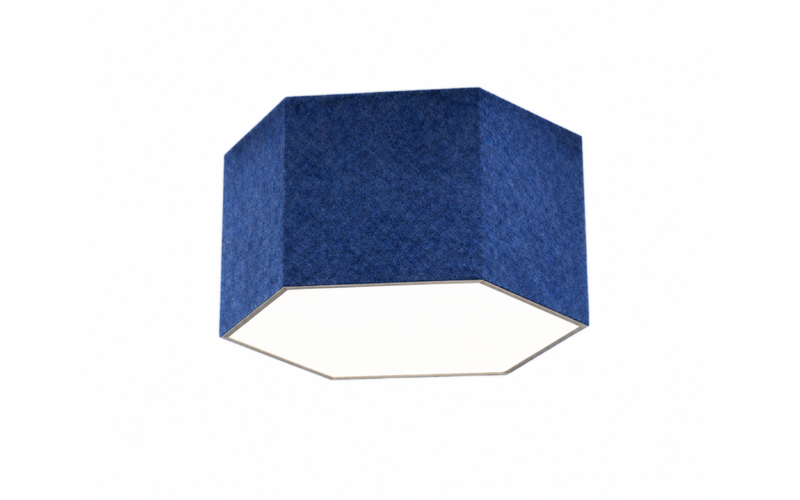

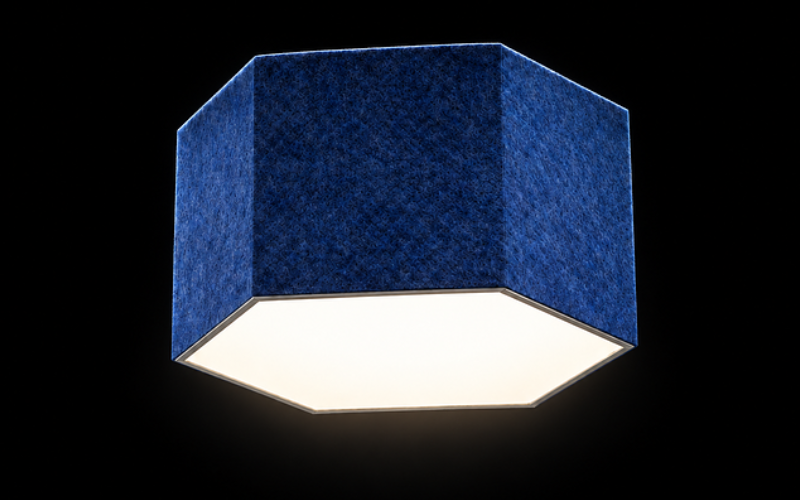

Hexa Drum.
 Configure
 Add to project
DESCRIPTION
The Hexa Drum Acoustic Collection combines a bold geometric profile with efficient LED illumination and integrated sound absorption. Constructed from aluminum, polycarbonate, and polyester fiber, the fixture features a clean hexagonal form that adds architectural character while helping reduce unwanted noise and reverberation. Its uniform 120° light distribution provides comfortable general illumination, making it especially suitable for conference rooms, offices, lobbies, hospitality spaces, and other contemporary interiors.
Available in 25W and 40W models with multiple height options, the Hexa Drum can be installed as either a suspended pendant or a surface-mounted fixture. It delivers up to 85 lm/W, CRI 90+, a power factor of at least 0.9, and operates on 110–277V.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 16.4"20.5"30.7"40.9"
    L: 18.9"23.6"35.4"47.2"
    H: 12"24"36"48"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K
  • CRI
    90
  • Watt(Approx)
    25 W40 W90 W180 W
  • Lumens(Approx)
    2125 Lm3400 Lm7650 Lm15300 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Non-Dim0-10V
  • Controls/Network
    Lutron®Casambi
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
    Acoustic Absorption
  • Mounting Type
    PendantCeiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
