BYIBA Light (Gordon Bullard)
BY-43-TR. SMOOTH (track).
Configure
Add to project




RESOURCES
DESCRIPTION
The SMOOTH Non-Magnetic Track system comes in both 1-Circuit and 3-Circuit track profiles, with lengths of 39.4” (100 cm), 78.7” (200 cm), and 118” (300 cm). Operating at 110-277V, the track is made from aluminum with an electrostatic powder coating, available in white or black finishes.

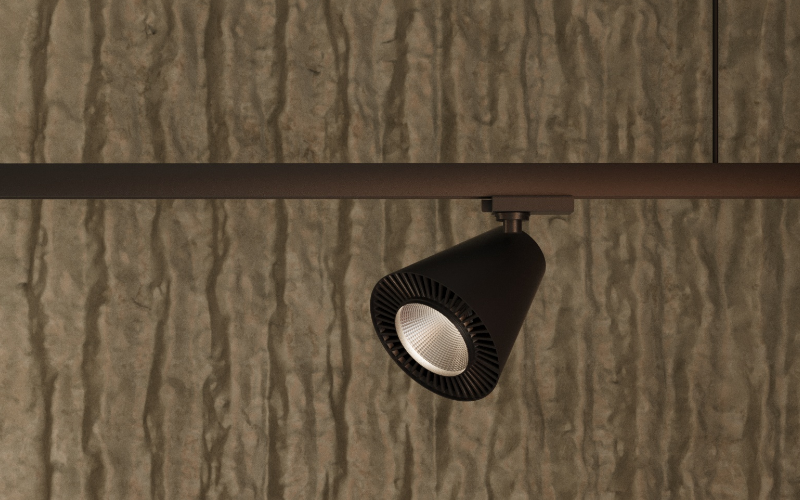

Included are two spotlight models, each measuring Ø 5.35” (13.6 cm) x H 5.3” (13.5 cm), with wattage options of 20W or 28W for the reflector version, and 19W for the lens version. Spotlights feature an anodized specular silver reflector or a lens. CCT options are 3000K, 4000K, or 5000K, with CRI options of 80 or 90, available in white, black, or gray finishes.
The gear box is crafted from die-cast aluminum with electro powder coating, and the reflector is anodized specular silver aluminum. The fixture has dimensions of Ø 13.8″ (35 cm) x H 14.3″ (36.3 cm), with an additional section measuring.
Available in black and grey finishes, it uses LED technology, operating at 110-277V with wattage options of 19W or 27W, and color temperatures of 3000K or 4000K, with CRI options of 80 or 90. ETL certified, this fixture is ideal for indoor applications.
Included are two spotlight models, each measuring Ø 5.35” (13.6 cm) x H 5.3” (13.5 cm), with wattage options of 20W or 28W for the reflector version, and 19W for the lens version. Spotlights feature an anodized specular silver reflector or a lens. CCT options are 3000K, 4000K, or 5000K, with CRI options of 80 or 90, available in white, black, or gray finishes.
The gear box is crafted from die-cast aluminum with electro powder coating, and the reflector is anodized specular silver aluminum. The fixture has dimensions of Ø 13.8″ (35 cm) x H 14.3″ (36.3 cm), with an additional section measuring.
Available in black and grey finishes, it uses LED technology, operating at 110-277V with wattage options of 19W or 27W, and color temperatures of 3000K or 4000K, with CRI options of 80 or 90. ETL certified, this fixture is ideal for indoor applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.35"L: 5.35"H: 5.32"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI80 90
- Watt(Approx)20 W19 W28 W
- Lumens(Approx)1469 Lm2277 Lm2244 Lm2284 Lm3000 Lm3044 Lm3056 Lm
- OpticsDirectMediumFloodGeneral Diffused
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
BY-43-TR
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
