20-03AR. JUT BOX OWTI ACOUSTIC.
Configure
Add to project
RESOURCES
DESCRIPTION

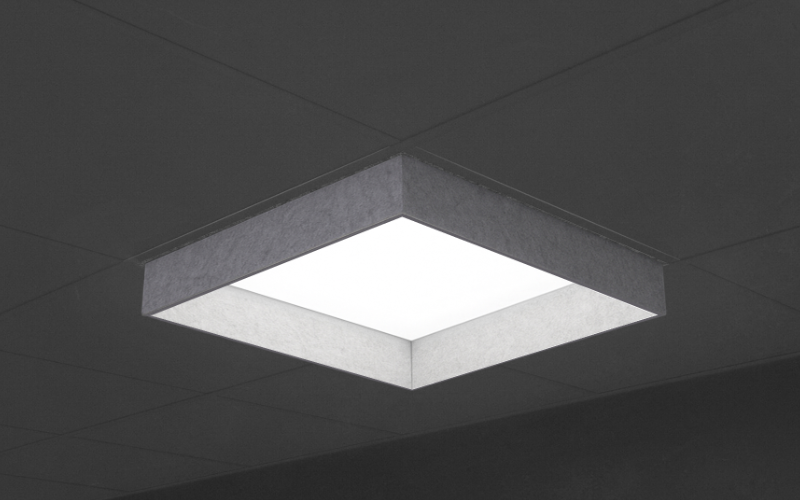

The Jut Box OWTI Acoustic by Barbican offers the possibility of adding dimension,color, and texture to an otherwise flat and ordinary ceiling. The Jut Box OWTI Acoustic expands the Jut Box family by combining a cost-effective light engine with PET felt in several shape and regress height options, providing a cost-effective option for an elevated look.

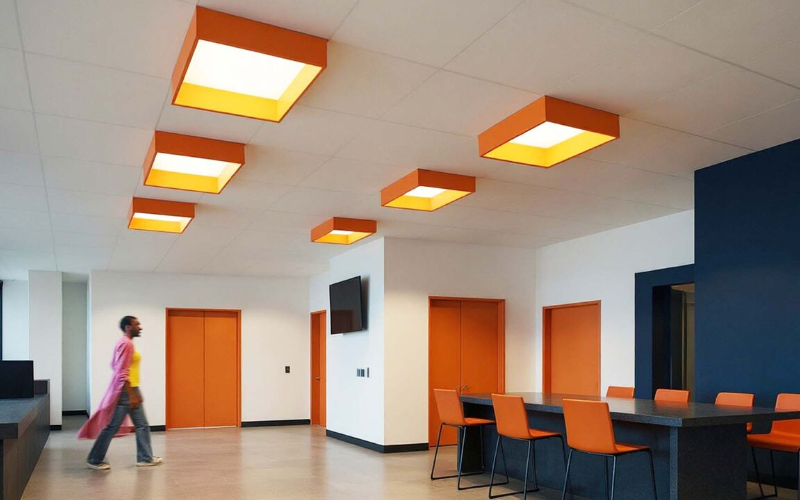

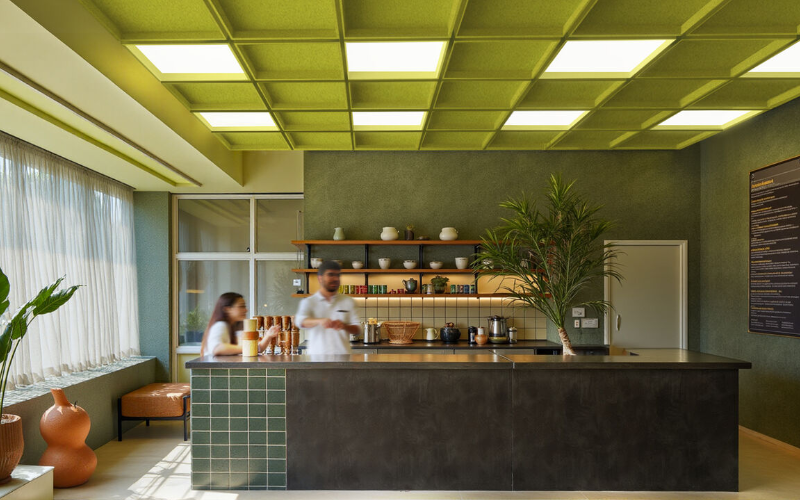

Groupings of fixtures can create mesmerizing design features in any space.
Groupings of fixtures can create mesmerizing design features in any space.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 24"L: 24"48"
- Light SourceLED
- CCT/Color3000K3500K4000KField Select CCT
- CRI90
- Watt(Approx)27 W37 W47 W46 W55 W
- Lumens(Approx)3790 Lm3615 Lm3505 Lm3405 Lm4820 Lm4675 Lm4540 Lm4985 Lm4765 Lm4660 Lm4570 Lm5055 Lm6320 Lm6030 Lm5840 Lm5680 Lm6645 Lm6355 Lm6215 Lm6095 Lm7000 Lm6865 Lm7485 Lm7155 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentAcoustic AbsorptionDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingFixture
- Housing Depth.354 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time20-03AR
