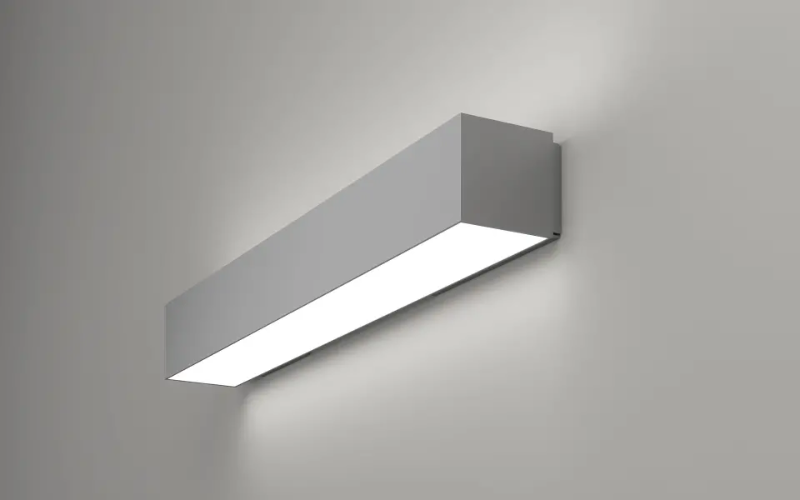

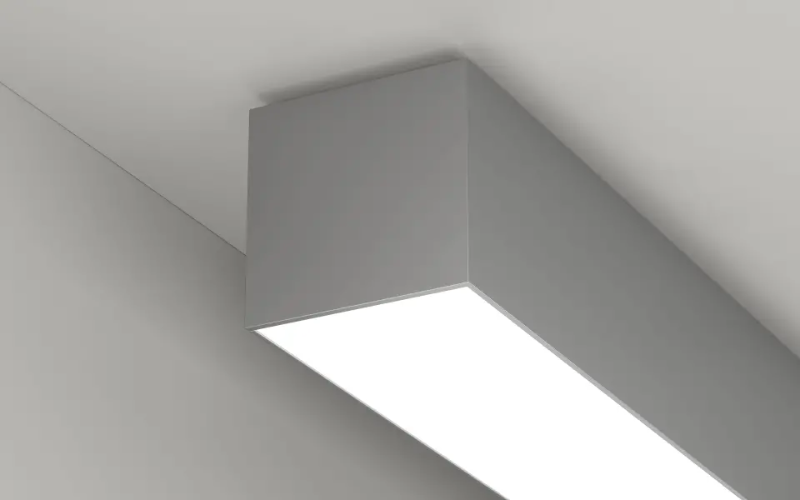

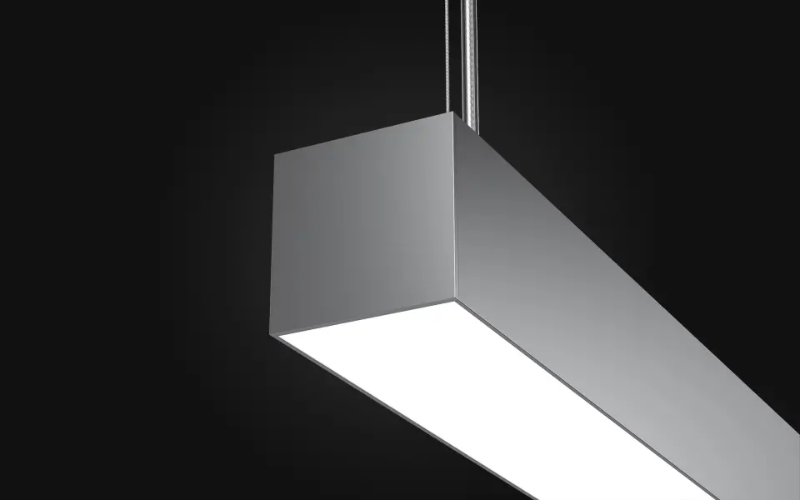

LPX3. LightPlane+ 3 Suspended, Surface, Wall.
Configure
Add to project
RESOURCES
DESCRIPTION
LightPlane+ is the ultimate linear lighting family offering 500+ configurable models featuring a complete range of mounting integrations, performance and optic options.
Specify continuous lengths, shapes, and complex patterns utilising four distinct apertures (1", 2", 3", and 4"). LightPlane+ can fill an entire linear fixture schedule, simplifying the specification process, order management, and project execution.
LightPlane+ is engineered for a streamlined installation process, featuring contractor-friendly features from continuous ControlRoll lensing, single-tool installation, and field adjustable sliding mount points. LightPlane+ brings sustainability within reach for all projects featuring a Declare Label and Red List Approved options.
Specify continuous lengths, shapes, and complex patterns utilising four distinct apertures (1", 2", 3", and 4"). LightPlane+ can fill an entire linear fixture schedule, simplifying the specification process, order management, and project execution.
LightPlane+ is engineered for a streamlined installation process, featuring contractor-friendly features from continuous ControlRoll lensing, single-tool installation, and field adjustable sliding mount points. LightPlane+ brings sustainability within reach for all projects featuring a Declare Label and Red List Approved options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/8"L: Run length (Ft)H: 3 3/16"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)2.3 W/Ft3.3 W/Ft4.6 W/Ft3.5 W/Ft5.1 W/Ft6.9 W/Ft7.1 W/Ft9.6 W/Ft8.9 W/Ft11.8 W/Ft
- Lumens(Approx)365 Lm/Ft367 Lm/Ft507 Lm/Ft531 Lm/Ft761 Lm/Ft774 Lm/Ft1007 Lm/Ft1214 Lm/Ft1021 Lm/Ft1301 Lm/Ft
- OpticsDirectIndirectDirect/IndirectGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%Dim to <1%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULT24*Declare
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
