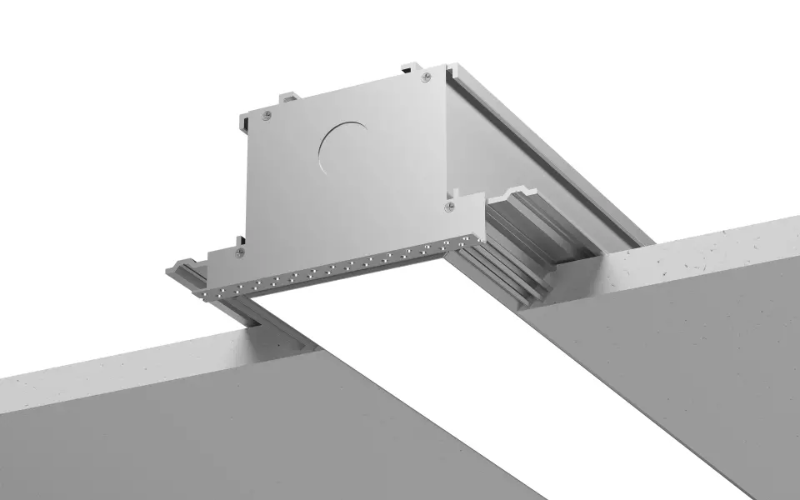

LPX3R. LightPlane+ 3 Recessed.
Configure
Add to project
RESOURCES
DESCRIPTION
LightPlane+ is the ultimate linear lighting family offering 500+ configurable models featuring a complete range of mounting integrations, performance and optic options.
Specify continuous lengths, shapes, and complex patterns utilising four distinct apertures (1", 2", 3", and 4"). LightPlane+ can fill an entire linear fixture schedule, simplifying the specification process, order management, and project execution.
LightPlane+ is engineered for a streamlined installation process, featuring contractor-friendly features from continuous ControlRoll lensing, single-tool installation, and field adjustable sliding mount points. LightPlane+ brings sustainability within reach for all projects featuring a Declare Label and Red List Approved options.
Specify continuous lengths, shapes, and complex patterns utilising four distinct apertures (1", 2", 3", and 4"). LightPlane+ can fill an entire linear fixture schedule, simplifying the specification process, order management, and project execution.
LightPlane+ is engineered for a streamlined installation process, featuring contractor-friendly features from continuous ControlRoll lensing, single-tool installation, and field adjustable sliding mount points. LightPlane+ brings sustainability within reach for all projects featuring a Declare Label and Red List Approved options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/8"L: Run length (Ft)
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)2.6 W/Ft3.7 W/Ft5.5 W/Ft7.6 W/Ft9.1 W/Ft
- Lumens(Approx)377 Lm/Ft525 Lm/Ft771 Lm/Ft1025 Lm/Ft1223 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULT24*Declare
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingWood
- HousingNew ConstructionChicago Plenum
- Housing Depth3 3/16 ''
