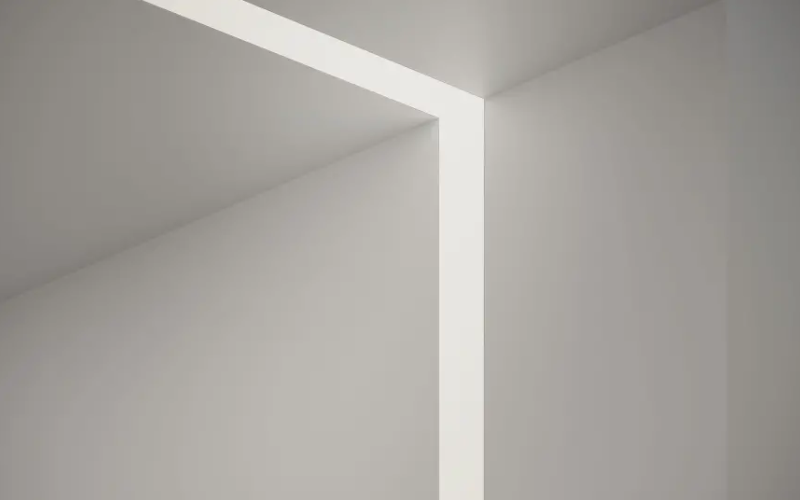

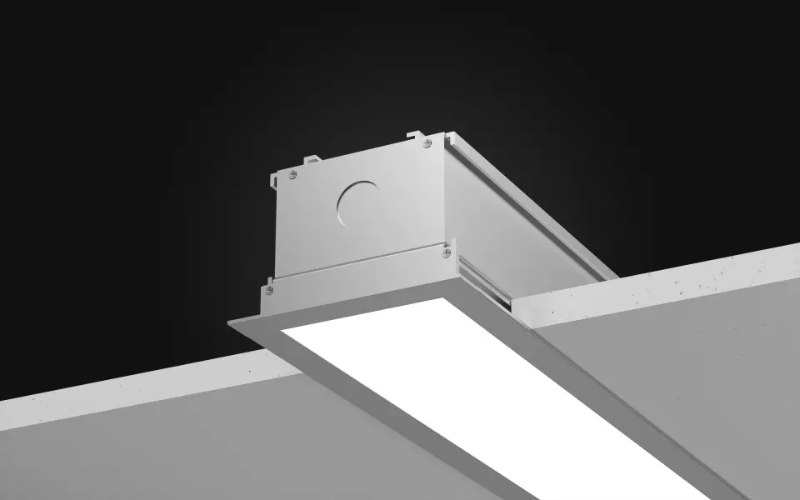

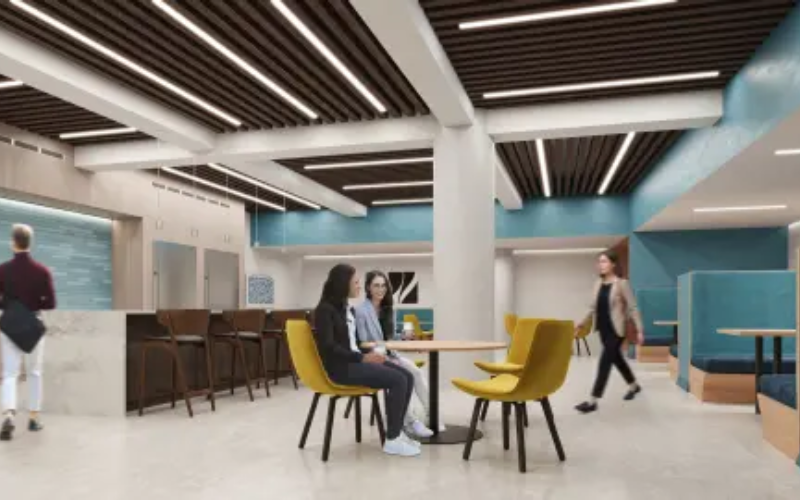

LPX3R. LightPlane+ 3 Recessed.
Configure
Add to project
RESOURCES
DESCRIPTION
LightPlane+ is the ultimate linear lighting family offering 500+ configurable models featuring a complete range of mounting integrations, performance and optic options.
Specify continuous lengths, shapes, and complex patterns utilising four distinct apertures (1", 2", 3", and 4"). LightPlane+ can fill an entire linear fixture schedule, simplifying the specification process, order management, and project execution.
LightPlane+ is engineered for a streamlined installation process, featuring contractor-friendly features from continuous ControlRoll lensing, single-tool installation, and field adjustable sliding mount points. LightPlane+ brings sustainability within reach for all projects featuring a Declare Label and Red List Approved options.
Specify continuous lengths, shapes, and complex patterns utilising four distinct apertures (1", 2", 3", and 4"). LightPlane+ can fill an entire linear fixture schedule, simplifying the specification process, order management, and project execution.
LightPlane+ is engineered for a streamlined installation process, featuring contractor-friendly features from continuous ControlRoll lensing, single-tool installation, and field adjustable sliding mount points. LightPlane+ brings sustainability within reach for all projects featuring a Declare Label and Red List Approved options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/8"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable WhiteRGBRGBW
- CRI80 90
- Watt(Approx)2.6 W/Ft3.7 W/Ft4.7 W/Ft5.5 W/Ft6.7 W/Ft7.6 W/Ft9.1 W/Ft11.6 W/Ftcustom
- Lumens(Approx)122 Lm/Ft377 Lm/Ft525 Lm/Ft771 Lm/Ft1025 Lm/Ft1223 Lm/Ft1526 Lm/Ftcustom
- OpticsDirectGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron EcoSystemeldoLED SOLO 0-10VDMX
- Controls/NetworkLutron®EthernetEnlightedENCELIUM®Wattstopper® DLMNX WirelessCasambiWaveLinxIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULT24*Declare
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingTech ZoneSlot T-Grid CeilingWood
- HousingNew ConstructionChicago Plenum
- Housing Depth3 3/16 ''
