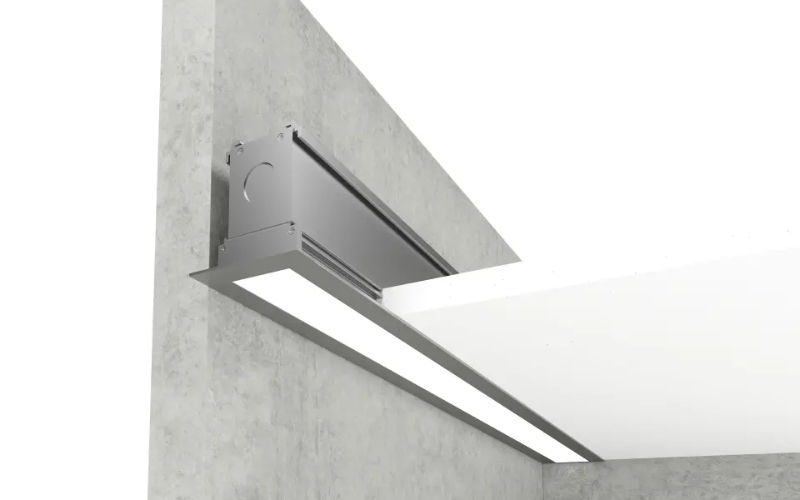

LPX1P. LightPlane+ 1P Recessed Perimeter.
Configure
Add to project
RESOURCES
DESCRIPTION
LightPlane+ is the ultimate linear lighting family offering 500+ configurable models featuring a complete range of mounting integrations, performance and optic options.
Specify continuous lengths, shapes, and complex patterns utilising four distinct apertures (1", 2", 3", and 4"). LightPlane+ can fill an entire linear fixture schedule, simplifying the specification process, order management, and project execution.
LightPlane+ is engineered for a streamlined installation process, featuring contractor-friendly features from continuous ControlRoll lensing, single-tool installation, and field adjustable sliding mount points. LightPlane+ brings sustainability within reach for all projects featuring a Declare Label and Red List Approved options.
Specify continuous lengths, shapes, and complex patterns utilising four distinct apertures (1", 2", 3", and 4"). LightPlane+ can fill an entire linear fixture schedule, simplifying the specification process, order management, and project execution.
LightPlane+ is engineered for a streamlined installation process, featuring contractor-friendly features from continuous ControlRoll lensing, single-tool installation, and field adjustable sliding mount points. LightPlane+ brings sustainability within reach for all projects featuring a Declare Label and Red List Approved options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 1/2"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable WhiteRGBRGBW
- CRI80 90
- Watt(Approx)3 W/Ft4.4 W/Ft4.7 W/Ft4.8 W/Ft6.7 W/Ft8.9 W/Ft10.9 W/Ftcustom
- Lumens(Approx)107 Lm/Ft366 Lm/Ft519 Lm/Ft768 Lm/Ft1009 Lm/Ft1219 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron EcoSystemeldoLED SOLO 0-10VDMX
- Controls/NetworkLutron®EthernetEnlightedENCELIUM®Wattstopper® DLMNX WirelessCasambiWaveLinxIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULT24*Declare
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingTech ZoneSlot T-Grid CeilingWood
- HousingNew ConstructionChicago Plenum
- Housing Depth3 3/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
